Product Description

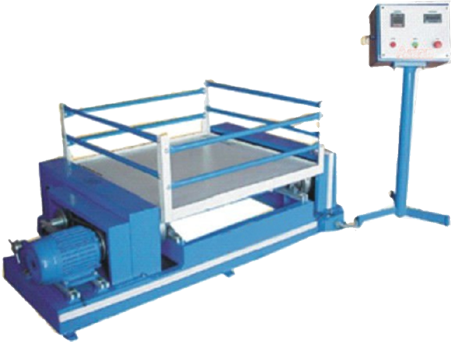

Transport Journey Simulator (Vibration Tester)
Vibration Tester or Transport Journey Simulator is designed to test & evaluate the transport worthiness of filled cartons / jars / drums / containers as per international specifications.
This machine effectively replicates the road journey and its effect on the package and its contents.
You can now simulate a thousands of kilometers of road journey in just a few hours and that too in the comfort of your own laboratory.
Load Capacity : 250 / 500 / 1000 Kgs
Standard Platform Size : 1200 x 800 mm
Small Platform Size : 800 x 600 mm
Large Platform Size : 1250 x 1250 mm
Suspension System : Automotive Type
Support Bearings : Pedestal Type
Table Top Throw : 25 mm
Amplitude : 12.5 mm
Speed / Frequency : 2 Hz (120 RPM) fixed.
or 3 Hz (180 RPM) fixed.
or 2-3 Hz (120 - 180 RPM) with
Variable Pully (Mechanical Variator)
or 1-3 Hz (120 - 180 RPM) with
Variable Frequency Drive (V.F.D.)
Power : 230 V AC or 415 V AC
