Product Description

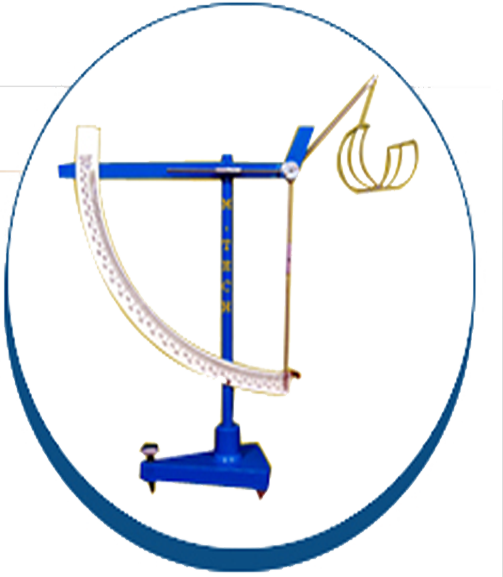

Quadrant scale is intended for measuring the basis weight very rapidly and accurately in grams per meter sq. of paper, board & corrugated fibre board or other sheet materials by weighing a small test sample of a certain dimension.
Product Specifications
Two graduated scales, Range:(0-250GSM), Graduation 1g/m2 for sample size. 25x40cm2 or 20x25 cm2.
• Range:(0-500 GSM), graduation:2 g/m2 for sample size:20x25 cm2.
• Full-scale reading corresponds to 25 grams.
• Indicating Scale radius 30 cm & 50cm.
• Rigid strip pendulum with hardened bearing for
suspension support.
• Sample Basket of stainless steel wire or
sample clip holder.
OPTIONS AVAILABLE :
Scale( 0-125 GSM), Graduation 0.5 g/m2
Scale: (0-500 GSM), Graduation 2 g/m2.
Scale: (0-1000 GSM), Graduation 4 g/m2
Tearing Template: 10x10 / 20x25 / 25x40 cm2.
