Product Details

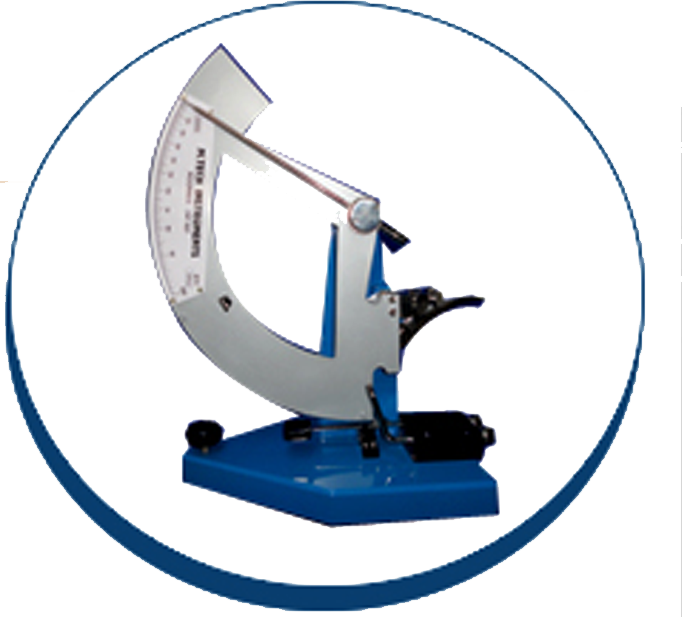

Tearing Strength Tester (Elmendorf Type)

Paper Testing Equipment --> Paper Testing Equipment
Product Description
This tester is intended for measuring the tearing resistance of paper, films and other sheets from the time tearing off starts to the moment a fixed length is torn off by the loss of potential energy of the fan shaped pendulum. It conforms to International Standard TAPPI, SCAN, ISOstandard.
Product Specifications
Tearing resistance tester is easy to operate and has a high accuracy level ± 1% of readout value. The complete pendulum is easily interchangeable after loosening the curled nut on the bearing shaft and, the whole pendulum assembly can be removed from the stand. SKF frictionless bearing assemblies are made of stainless steel Sample clamp are made of stainless steel. Pivoted knife are made of hardened carbon steel Specimen size: 62.0 mm ± 0.2 mm long and 50 mm ± 2 mm width. Scale graduation 0-100. Interchangeable pendulum having the following capacity. Light pendulum: 8000 mN, Medium Pendulum: 16000 mN, Heavy pendulum: 32000 mN. Dimensions: Approx. 500 mm x 200 mm x 400 mm. Net weight of three pendulum tester: Approx. 22 kg.
Other Details
NA

Model No MTI - P 114 Power Supply NA
Load Capacity NA Attachment DOWNLOAD
