Product Description

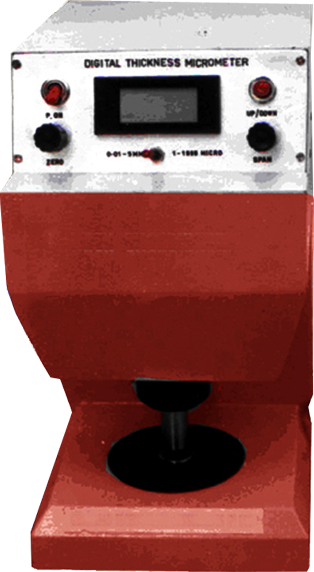

he thickness of sheet is measured as the distance between two circular plane surface, under a steady pressure 1Kg/cm2 (98.0 Kpa). For rapid and accurate measurement of thickness of paper, board and plastics. Motorized, sturdy, easy to use and “push the button” operation. Digital Display, Mitutoyo (Japan) make add-on type optical transducer.
With Resolution 0.01mm. , With Resolution 0.001mm.
THICKNESS MICROMETER FOR TISSUE
For rapid and accurate measurement of thickness of tissue and other soft material.
The thickness of sheet is measured as the distance between two circular plane surface, under a steady pressure of 0.2 kg dead weight load over a 10 cm2 surface area.
Product Specifications
Measuring spindle with constant lowering speed (1 mm/sec) and Single Button Operation (Motorized).
Hardened and lapped measuring face
Provided with Mitutoyo (Japan) make add-on
Optical Transducer which scan a line screen.
Compact Models with digital displayTest area
(This means that the pressure applied
by the weight shall be about 2 Kg.)
: 2 cm2 Steady Pressure 1 Kg/cm2 (98.0 Kpa)
Throat Depth 75 mm. Measuring Range 0-5 mm
Resolution 1µm
