Product Description

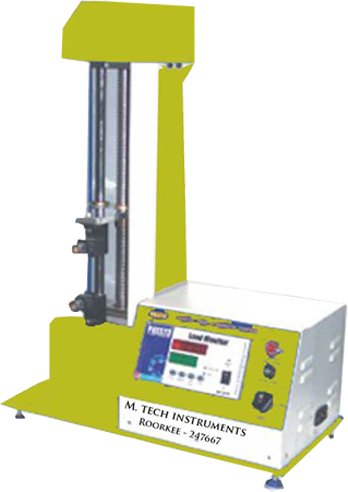

The Peel Tester Machine is an essential instrument used in the packaging, adhesive, and materials industries to measure the peel strength or adhesion force of materials. It evaluates how well two surfaces or layers of materials bond to each other and how easily they can be separated under stress. This test is important for determining the effectiveness of adhesives, coatings, and laminates used in packaging, labels, and a variety of other applications.
The Peel Tester works by applying a controlled force to peel apart two bonded surfaces at a consistent rate. One end of the material is securely attached to a fixed surface, while the other end is pulled at a specific angle, typically 90° or 180°. The force required to peel the material apart is measured and recorded, usually in units of Newtons (N) or pounds of force (lbf). The results provide valuable information on the adhesive strength of the bond and can indicate potential weaknesses in the material’s adhesion.
Peel tests are commonly used for evaluating tape, labels, laminates, packaging seals, and other bonded materials. By using a Peel Tester Machine, manufacturers can ensure their products meet the required adhesive strength standards, improve product quality, and prevent packaging failures or issues in use. The machine also plays a vital role in product development, quality control, and material optimization.
================================================
Are you looking for the best Peel Tester Machine manufacturers in India?
Are you searching for the top Peel Tester Machine exporters in India?
Are you looking for leading Peel Tester Machine suppliers in India?
MTech Instruments is one of the best Peel Tester Machine manufacturers, exporters and suppliers in India. We manufacture Peel Tester Machine then export and supply to USA, UK, Canada, Singapore, Australia, UAR, Dubai, and European Courtiers (France, Italy, Germany, Spain, etc.) at affordable prices.
Product Specifications
Motorized test stand
PLC controlled with integrated motion
User-friendly operator interface
Variable test speeds
Standard modes
Manual jogging
Single cycle test at user preset speed
Quick cam-lock tooling for standard samples
Real time and peak force display
Average force calculation
Distance measurement
Strain gauge transducer technology
Options
Various stroke lengths
Various force ranges
Data logging to PC
Reporting and Data Acquisition
Cutting tools
Specifications
Electrical: 120VAC, 3 Amps
Force Range: 0 – 50 lbs
Speed Range: 0.5 in/min – 50 in/min
Stroke Length: 8 inches
Accuracy: +/- 0.01 lbs static
Resolution: +/- 0.01 lbs
