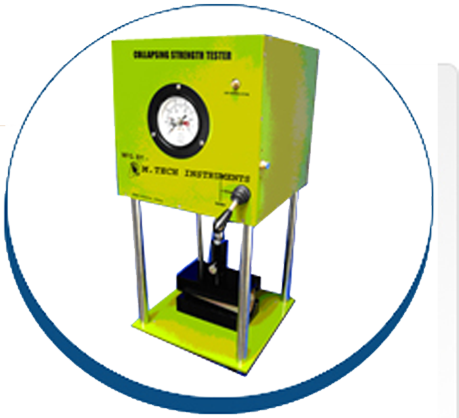

Core-Cone Collapsing Strength Tester
Paper Testing Equipment
-->
Paper Testing Equipment
Product Description
A Core with in a roll of paper which has collapsed radically or the end is crushed axially from excessive thrust loads. Damage is due to hard impact received during handling & transit. Defective roll as a result it of surfacing rolls on end in an excessively high pile, which in turn causes the lower ends of the lower rolls to fail in axial direction. Specification:- ? To test the tube pressure increase by the force of air pressure by the pneumatic cylinder with control hand operated valve. ? Pressure shows by the pressure gauge with fixer pointer in unit kg/cm2. ? After rupture the cone/tube the fixer pointer stops and shows the gauge reading in kg/cm2. ? Different jig will be used for different size of
Capacity: 100 / 1000 Kgf.
Product Specifications
Air Supply
7 Kg/ cm2
Display
On bourden type pressure guage with maximum
peak pointer.
